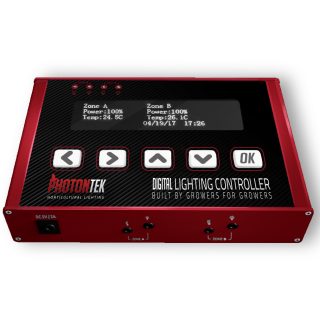

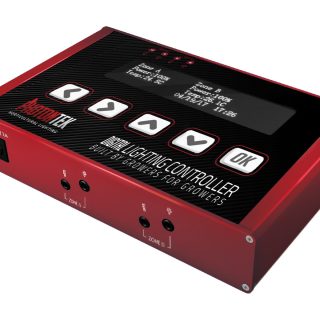

Photontek Digital Lighting Controller PTEKM0017
The P-TEK Digital Lighting Controller is a full-control LED fixture master panel, that allows you to harness the full power of our entire LED lighting range.
Using the newest tech available, this smart-feature accessory will quickly become your best grow mate as it constantly monitors and helps maintaining your environmental temperatures, lighting schedules & intensity automation.
Smart, but still incredibly user friendly, this unit is a twin channel controller. Giving growers the ability to control individual ‘zones’, capable of operating up to 50 LED fixtures each!
Using an analogue 0-10V signal, each channel (Zone) can either control the same-powered LED drivers; Zone A can control the same-powered drivers as Zone B OR Zone B can be set to control different powered LED drivers. Eg: Zone A can be set to control 465W LED fixtures and Zone B set to control 600W, with the same accuracy and safety protections across your entire set-up.
Specifications
Product Code: PTEKM0017
Power: Adaptor 100 – 277V AC 50/60Hz – DC 5V/2A
Match LED Driver: All PhotonTek Controllable LED Drivers
Power Dimming Range: 0%, 10% - 100%
Power Regulation Accuracy: 1%
Temperature-controlled Safety Dimming range: 0ºC-40ºC / 32ºF-104ºF
Temperature-controlled Safety Switching range: 10ºC-50ºC / 50ºF-122ºF
Sunrise and Sunset Duration: 0-30 min
Dimensions: 125 x 80 x 25mm
Features
- Control panel for up to 100 LED drivers
- Compatible with PhotonTek Controllable LED fixtures
- Light Timing
- 24hr Light scheduling and switching, including the ability to simulate sunrise and sunset periods, for perfectly imitating natural environments.
- Temperature-control dimming & switching for safety control
- Automate light intensity and therefore your PPFD totals for specific times.
- Accurate dimming control of increments of 1%
What's in the box?
- 1 x PhotonTek Digital Controller
- 1 x Power adaptor and cable
- 2 x Temperature sensor 5m cable
- 2 x LED control link cable
Documents
Manual, Spec Sheet, Certificates, Test Reports, Photo Pack
