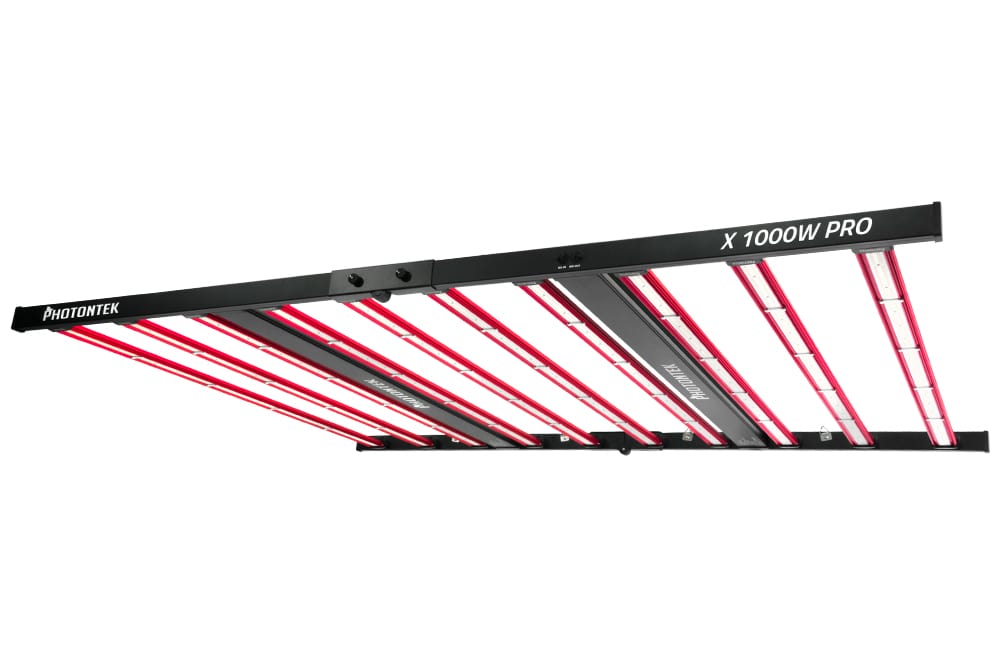

Photontek X 1000W Pro LED PTEKLED025
The most powerful and the largest rectangular footprint from the single biggest linear bar array LED Grow Light on the market. Designed for 6.5’x 5’ coverage.
The wait is finally over, PhotonTek is happy and proud to announce the most powerful and the largest rectangular footprint from the single biggest linear bar array LED Grow Light on the market: The X 1000W Pro, designed for 6.5’x 5’ coverage.
Producing extremely high levels of PPF output of 2925 µmol/s and a Photon Efficacy (fixture efficiency) of 2.9 µmol/J, X 1000W Pro LED creates a homogeneous light spread at close distance from the crop canopy, resulting in outstanding results when used in 6.5’x5’ coverage indoor grow areas.
When compared to regular similar wattage High Pressure Sodium solutions the X 1000W Pro LED can achieve 40-50% less HVAC capacity and increased yields of up to 50-70%.
The X 1000W Pro LED is built using high quality and durable PHOTONTEK drivers and top bin LEDs from Osram and Lumileds generating an optimized full-spectrum light source ideal for veg and flowering stages.

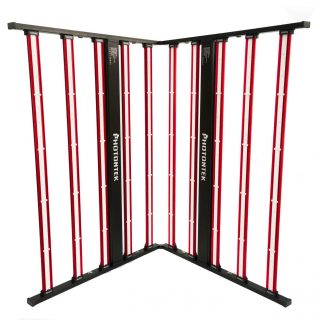

This fixture has an innovative large foldable frame and a unique light spread and distribution. The LED may be dimmed, allowing you to adjust PPFD levels produced without losing efficiency.
In addition, the X 1000W Pro LED fixture can be externally controlled with a PHOTONTEK Digital Lighting Controller featuring light timing, automated dimming (1% increments), temperature safety control, Sunrise & Sunset Mode for up to 100 fixtures per controller.
Universal Control Systems Compatibility
PhotonTek Pro LED Fixtures can be fully controlled with either the PhotonTek Digital Controller or with any other Control System that utilises 0-10V output signal. Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.
Product Code: PTEKLED025
Efficacy: 2.9 µmol/J
PPF: 2925 µmol/s
Input Voltage: 120-277V, 50-60Hz
Input Power (100%): 1005W (277V); 1025W (120V)
Footprint: 6.5’x5’
Waterproof: IP65
Lifetime: 60 000 hrs
Light Distribution: 120°
Light Source: Higher Spec Osram and Lumileds Diodes
Dimmable: OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included)
External Control: With PhotonTek Digital Controller or Universal Controller 0-10V
Weight: 38.58 Lbs
Dimensions: 66.92’’x 48’’ x 1.9’’
Spectrum: Full Spectrum
Features
- Highest Market Fixture Efficacy 2.9 µmol/J
- High PPF output for high intensity 2925 µmol/s
- Innovative large foldable frame designed for wider rectangular coverage
- Unique light spread and distribution in 6.5’x 5’ grow area
- Lowest $/µmol
- World Class Diodes & Drivers
- New Clear Glue Technology on the LED Bars Protection Cover
- Optimized Full-Spectrum
- Fully Dimmable
- External Control with PHOTONTEK Digital Controller
- Interchangeable Magnet LED Bars
- User Friendly & Easy Set-Up
- 5 Year Warranty
What's in the box?
- 10 x PHOTONTEK 100W 2.9 Full-Spectrum Magnet LED Bars
- 1 x Foldable Frame Structure with 2 x 500W Pro Incorporated Drivers + Connecting cables
- 2 x Power Cables (NEMA 5-15P Plug for 120V / NEMA 6-15P Plug for 240V)
- 1 x 0-10V Light Dimmer + Velcro
- 2 x Metal Cable Hangers
- 1 x Manual
Documents
Manual, Spec Sheet, Certificates, Test Reports, Photo Pack
